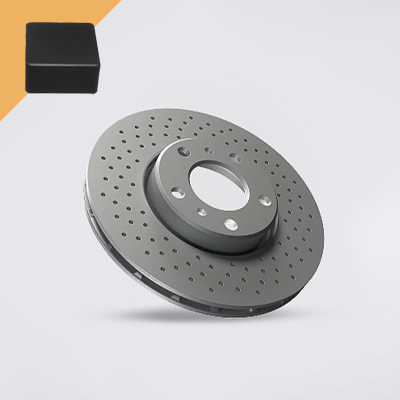

Brake Disc
-
Material:HT250
-
Hardness:HB190-210
-
Insert type:UBN S1
-
Insert Model:CNMN120712
-
Operation:Continuous, rough processing
-
Cutting Parameters:Vc=800m/min ap=2-3mm f = 0.45mm/r

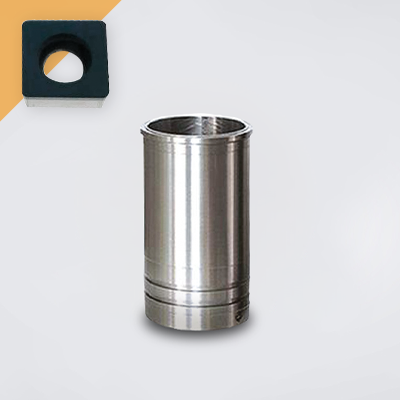

Cylinder liner
-
Material:Alloy cast iron
-
Hardness:HB230-260
-
Insert type:UBNX2
-
Insert Model:SCGW09T308
-
Operation:Continuous finishing
-
Cutting Parameters:Vc=300m/min ap=0.6mm F = 0.25mm/r

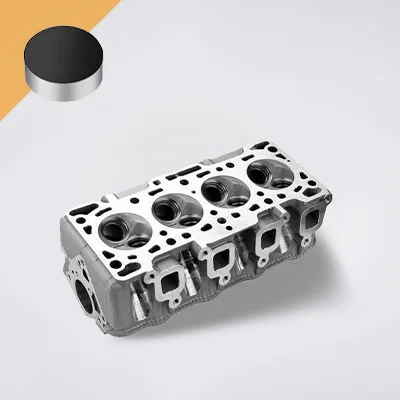

Engine cylinder head
-
Material:HT250
-
Hardness:HB220
-
Insert type:UDI Q
-
Insert Model:RNGN090300
-
Operation:Finishing
-
Cutting Parameters:Vc=500m/min ap=0.3mm F = 2000mm/min

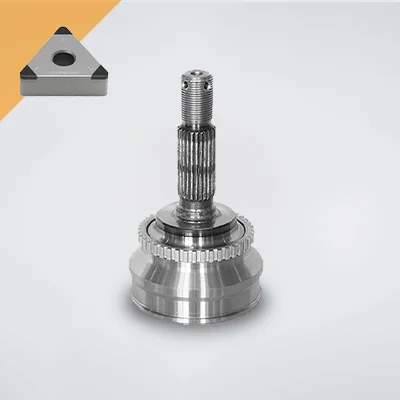

Cage
-
Material:S55C
-
Hardness:HRC58-62
-
Insert type:DHA650
-
Insert Model:TNGA160416
-
Operation:Finishing
-
Cutting Parameters:Vc=180m/min ap=0.2mm f = 0.08mm/r

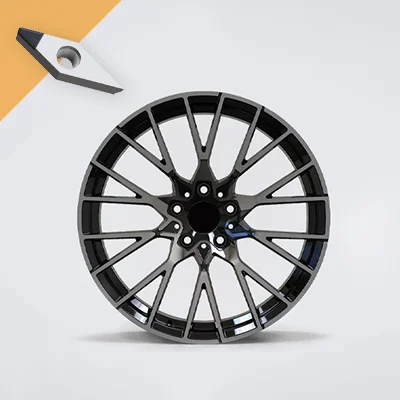

Wheels
-
Material:AlSi7
-
Insert Model:VCGT160412
-
Operation:Finishing
-
Cutting Parameters:Vc=300m/min ap=0.2mm f=0.03mm/r

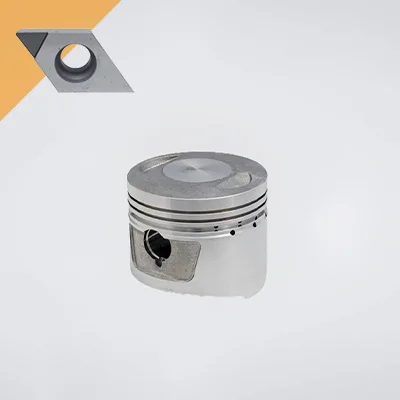

Piston
-
Material:ZL108
-
Insert Model:DCGT11T308
-
Operation:Finishing
-
Cutting Parameters:Vc=1500m/min ap=0.3mm f=0.12mm/r
