Coated CBN insert
-
Brand:UHD
-
Comparative Brand:SUMITOMO BNC200, BNC300, BNC2010
-
Availability:within one week
-
Place of origin:China
APPLICATION：
UHD Coated CBN inserts can be used in many fields including automotive industry, and energy equipment industry etc. It is an ideal tool to cut and process different materials such as hardened steel,cast irons and sintered irons as well as powder metallurgy components.
●Ball Track Machining of Wheel Bearing
●Bearing Outer Ring Machining
●Bearing Outer Ring Machining in wind power industry
SPECIFICATIONS：
| Item | L | ΦIC | S | R | Grade | |||||||
| ISO | mm | mm | mm | mm | ||||||||

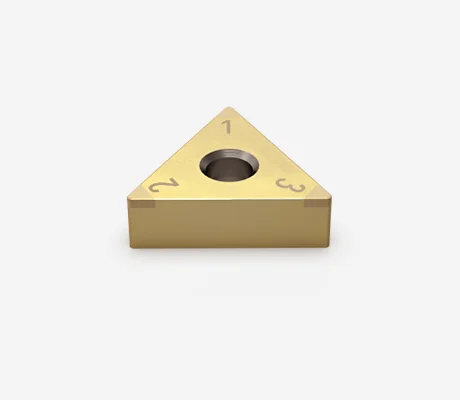

| TNGA160404 | 15.5 | 9.525 | 4.76 | 0.4 | S1 | S2 | S3 | S4 | S5 | X2 | X3 | X5 |
| TNGA160408 | 15.5 | 9.525 | 4.76 | 0.8 | . | . | . | . | . | . | . | . |

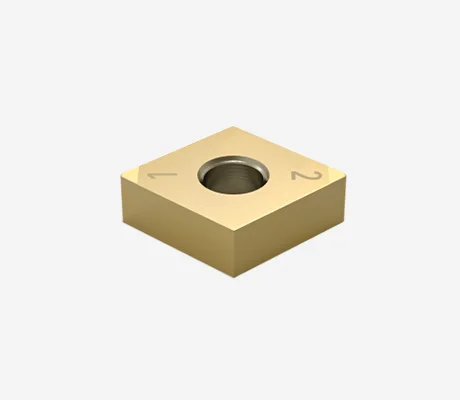

| CNGA120404 | 12.7 | 12.7 | 4.76 | 0.4 | . | . | . | . | . | . | . | |
| CNGA120408 | 12.7 | 12.7 | 4.76 | 0.8 | . | . | . | . | . | . | . | |
| CNGA120412 | 12.7 | 12.7 | 4.76 | 1.2 | . | . | . | . | . | . | . | . |
| CCGW09T304 | 9 | 9.525 | 3.97 | 0.4 | . | . | . | . | . | . | . | . |
| CCGW09T308 | 9 | 9.525 | 3.97 | 0.8 | . | . | . | . | . | . | . | |
| CCGW120404 | 12 | 12.7 | 4.76 | 0.4 | . | . | . | . | . | . | . | . |
| CCGW120408 | 12 | 12.7 | 4.76 | 0.8 | . | . | . | . | . | . | . | . |
| CCGW120412 | 12 | 12.7 | 4.76 | 1.2 | . | . | . | . | . | . | . | . |

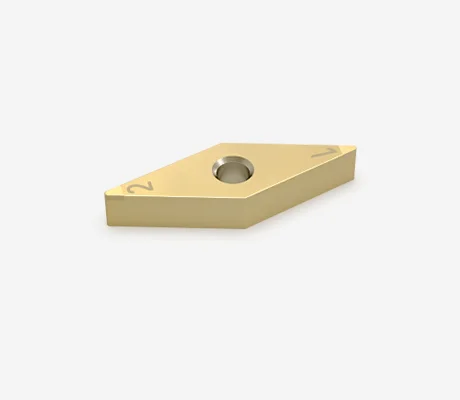

| VNGA110304 | 6.35 | 6.35 | 3.18 | 0.4 | . | . | . | . | . | . | . | . |
| VNGA160404 | 9.525 | 9.525 | 4.76 | 0.4 | . | . | . | . | . | . | . | . |
